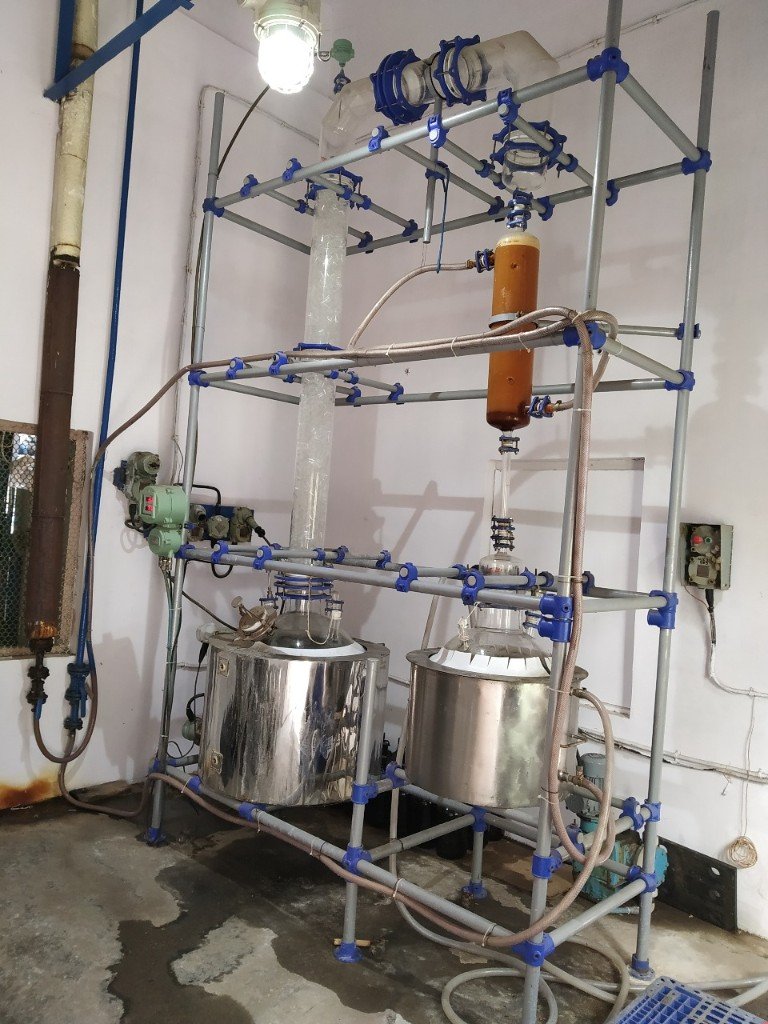

Simple Flash Distillation Unit
ANTICO FlashSep™ is designed for rapid separation of liquid mixtures based on volatility differences. The working principle involves partial vaporization where lighter components are separated instantly. The system includes a feed system, vaporization chamber, condenser, and receivers. It is used for solvent recovery and basic purification processes. The design allows operation under atmospheric or reduced pressure.
It provides quick and efficient phase separation. The unit is compact and easy to operate. It is suitable for laboratory and pilot-scale applications. Industries such as chemicals and pharmaceuticals commonly use it. ANTICO FlashSep™ offers efficient and simple separation solutions.
- Type Simple Distillation / Flash Evaporation
- Capacity 0.1 L/hr – 500 L/hr
- MOC (Wetted Parts) Borosilicate Glass 3.3 / SS / Glass-lined Steel
- Operation Mode Batch / Continuous (Flash)
- Design Pressure Full vacuum to Atmospheric
- Operating Temperature Ambient to 250°C (depends on MOC)
Key Features
-
High vapor-liquid separation efficiency
High vapor-liquid separation efficiency
-
Compact and skid-mounted design
Compact and skid-mounted design
-
Low residence time for thermal-sensitive materials
Low residence time for thermal-sensitive materials
-
Continuous operation capability
Continuous operation capability
-
Energy-efficient design
Energy-efficient design
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.

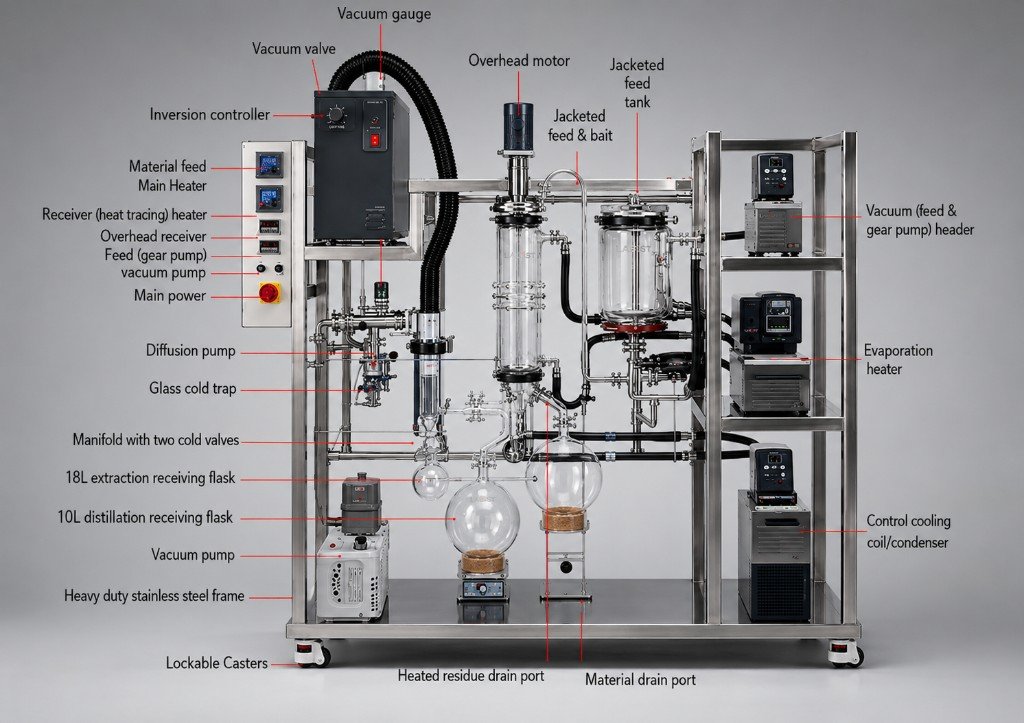

System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Petrochemicals
- Solvent recovery plants
- Pharmaceutical intermediates
- Specialty chemicals
- Waste treatment facilities
- Oil & gas processing
- Oil & gas processing
- Water treatment
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Simple Distillation / Flash Evaporation |
| Capacity | 0.1 L/hr – 500 L/hr |
| MOC (Wetted Parts) | Borosilicate Glass 3.3 / SS / Glass-lined Steel |
| Operation Mode | Batch / Continuous (Flash) |
| Design Pressure | Full vacuum to Atmospheric |
| Operating Temperature | Ambient to 250°C (depends on MOC) |
| Heating System | Electric Heater / Oil Bath / Steam |
| Cooling System | Water / Chilled Water Condenser |
| Evaporation Type | Single-stage Vaporization |
| Condenser Type | Coil / Shell & Tube / Liebig (glass systems) Vacuum System Vacuum Pump (Liquid Ring / Dry) |
| Feed System | Gravity / Metering Pump |
| Distillate Collection | Receiver Flask / Tank |
| Instrumentation | Temperature Indicator, Vacuum Gauge |
| Automation | Manual / PID Control (Optional) |
| Applications | Solvent Recovery, Low-boiling Separation, Pre-concentration |
Related Products
FAQ
What capacity range is available for Simple / Flash Distillation Unit?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
