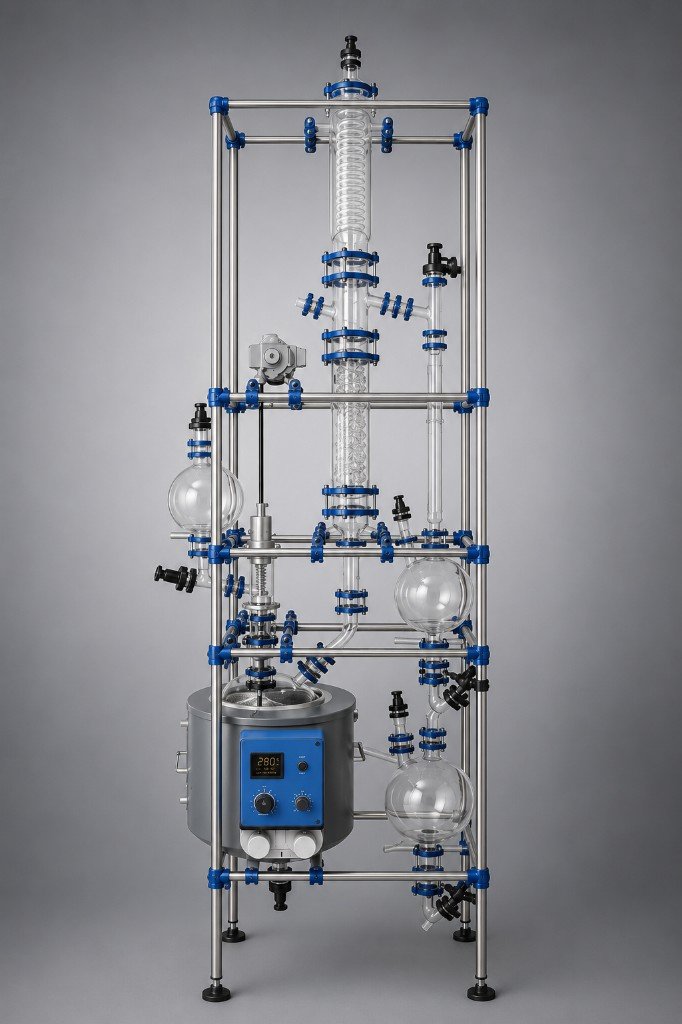

Reflux Reaction Distillation Unit
ANTICO RefluxPro™ is designed for reactions carried out under controlled reflux conditions with simultaneous separation. The working principle involves maintaining a boiling reaction mixture while condensing and returning vapors to sustain equilibrium. The system includes a reactor vessel, condenser, reflux divider, and collection system. It is used for reactions where continuous removal of volatile components improves yield. The reflux control ensures optimal reaction conditions and product purity. The system allows precise adjustment of reflux ratio and temperature. It supports batch operations with high reproducibility.
It is commonly used in fine chemical and pharmaceutical synthesis. The design improves reaction efficiency and separation performance. ANTICO RefluxPro™ provides integrated reaction and purification capability.
- Type Batch Reaction with Reflux Distillation
- Capacity 0.5 L – 2000 L
- MOC (Wetted Parts) Borosilicate Glass 3.3 / SS316L / Glass-lined…
- Reactor Type Jacketed Reactor with Distillation Column
- Column Type Packed Column / Tray Column
- Reflux System Condenser with Adjustable Reflux Divider
Key Features
-
Controlled reflux ratio
Controlled reflux ratio
-
Efficient heat management
Efficient heat management
-
Integrated condenser system
Integrated condenser system
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.

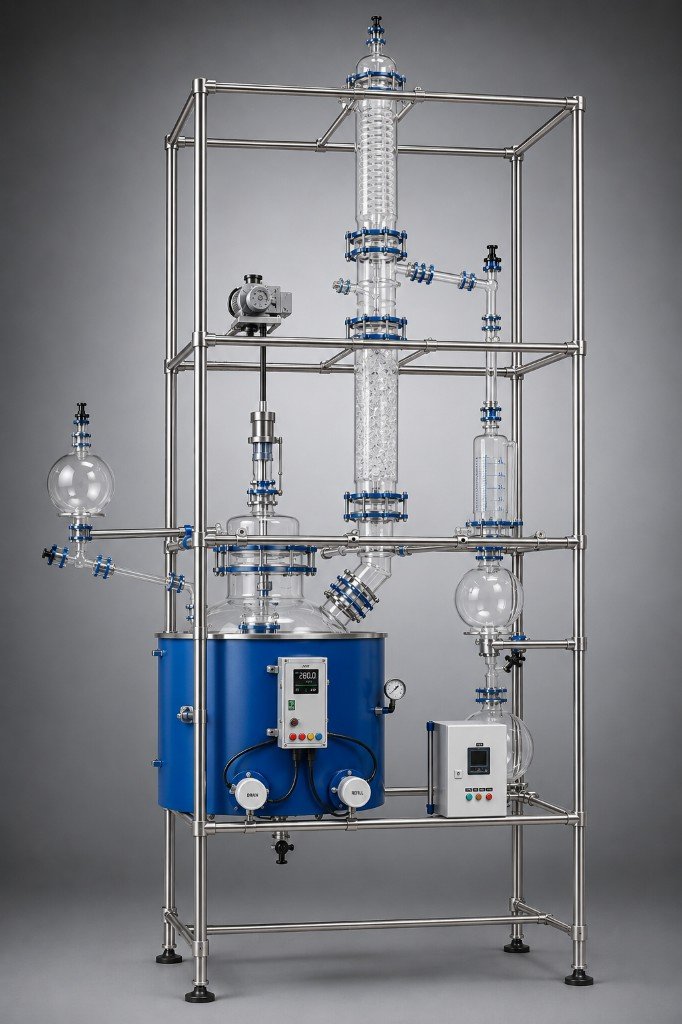

System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Pharmaceutical synthesis
- Fine chemicals
- Resin production
- Specialty chemicals
- Food & beverage processing
- Academic & government research
- Oil & gas processing
- Water treatment
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Batch Reaction with Reflux Distillation |
| Capacity | 0.5 L – 2000 L |
| MOC (Wetted Parts) | Borosilicate Glass 3.3 / SS316L / Glass-lined Steel |
| Reactor Type | Jacketed Reactor with Distillation Column |
| Column Type | Packed Column / Tray Column |
| Reflux System | Condenser with Adjustable Reflux Divider |
| Operation Mode | Batch / Semi-batch |
| Design Pressure | Vacuum to +3 barg |
| Operating Temperature | Ambient to 250°C |
| Heating System | Oil Bath / Steam / Electrical Heating |
| Cooling System | Cooling Water / Chilled Water |
| Agitation System | Anchor / Turbine (VFD controlled) |
| Condenser Type | Coil / Shell & Tube |
| Distillate Handling | Receiver with Phase Separation (optional) |
| Instrumentation | Temp (Reactor & Column), Pressure, Reflux Control |
| Automation | PID / PLC with Reflux & Temperature Control |
| Applications | Esterification, Solvent Recovery with Reaction, API Synthesis |
Related Products
FAQ
What capacity range is available for Reflux Reaction Distillation Unit?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
