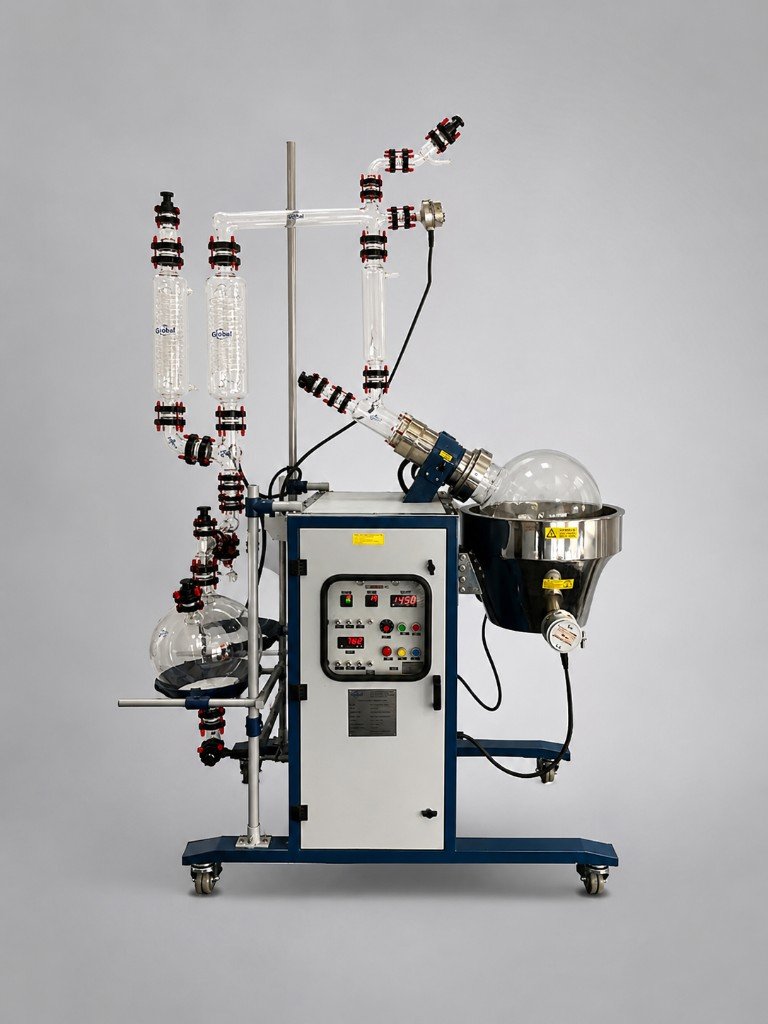

Rotary Evaporator
ANTICO Rotex™ is a laboratory or kilo lab scale evaporation system designed for solvent removal under reduced pressure. The working principle involves rotating a flask to create a thin liquid film, enhancing evaporation efficiency. The system includes a rotating flask, heating bath, condenser, vacuum system, and collection flask. It is used for solvent recovery, concentration, and sample preparation. Rotation improves heat transfer and prevents bumping during evaporation. The system allows precise control of temperature and vacuum levels.
It is ideal for small to midscale and R&D applications. It supports evaporation of volatile solvents efficiently. It is widely used in laboratories, pharmaceuticals, and academic research. ANTICO Rotex™ provides reliable and user-friendly evaporation performance.
- Type Rotary Evaporation System
- Capacity 0.1 L – 50 L
- MOC (Wetted Parts) Borosilicate Glass 3.3 / PTFE
- Operation Mode Batch, Semibatch
- Design Pressure Vacuum (up to 1 mbar)
- Operating Temperature Ambient to 200°C (bath dependent)
Key Features
-
Rotating flask for uniform heating
Rotating flask for uniform heating
-
Vacuum-assisted evaporation
Vacuum-assisted evaporation
-
Efficient condenser system
Efficient condenser system
-
Compact design
Compact design
-
ATEX compiled system
ATEX compiled system
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.

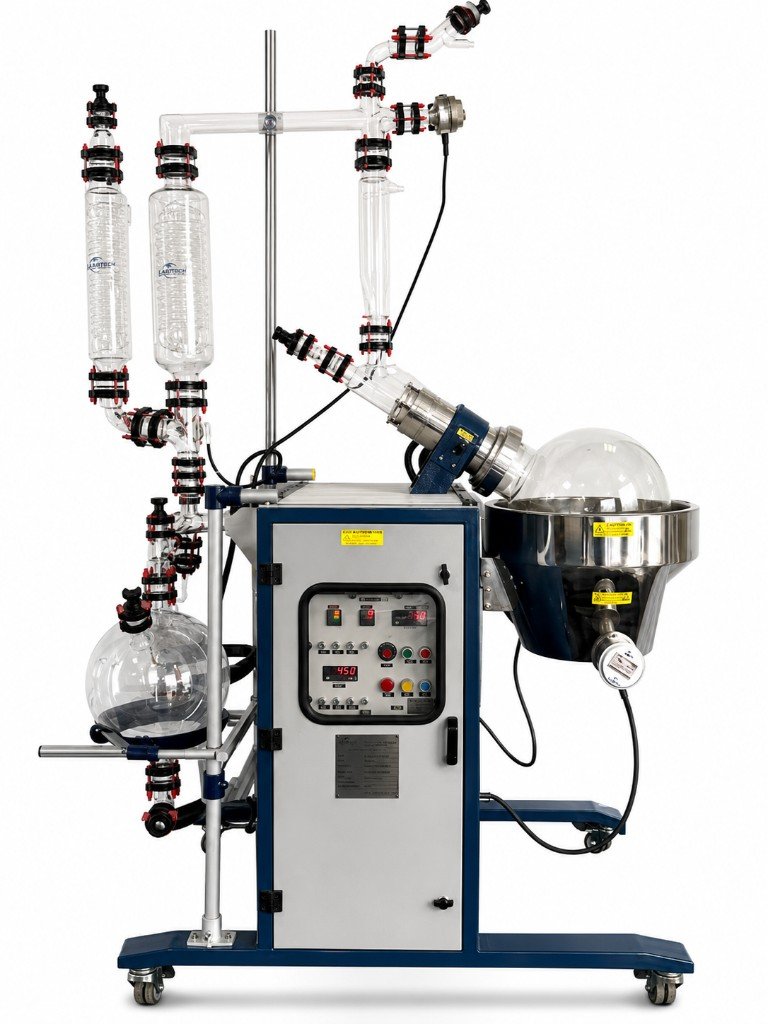

System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Pharmaceutical R&D
- Chemical labs
- Academic institutes
- Food testing labs
- Cannabis extraction
- Academic & government research
- Oil & gas processing
- Water treatment
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Rotary Evaporation System |
| Capacity | 0.1 L – 50 L |
| MOC (Wetted Parts) | Borosilicate Glass 3.3 / PTFE |
| Operation Mode | Batch, Semibatch |
| Design Pressure | Vacuum (up to 1 mbar) |
| Operating Temperature | Ambient to 200°C (bath dependent) |
| Evaporation Principle | Thin Film via Rotating Flask |
| Rotation Speed | 0 – 200 RPM (adjustable) |
| Heating System | Water / Oil Bath |
| Condenser Type | Vertical / Diagonal Coil Condenser |
| Cooling System | Recirculating Chiller / Water Vacuum System |
| Diaphragm / Rotary Vacuum Pump | Flask Type |
| Round Bottom Evaporation Flask | Receiving System |
| Single / Dual Receiver | Instrumentation |
| Temp Display, Vacuum Gauge | Automation |
| Manual / Digital Control | Key Advantage |
| Efficient Solvent Removal at Reduced Pressure | Applications |
Related Products
FAQ
What capacity range is available for Rotary Evaporator?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
