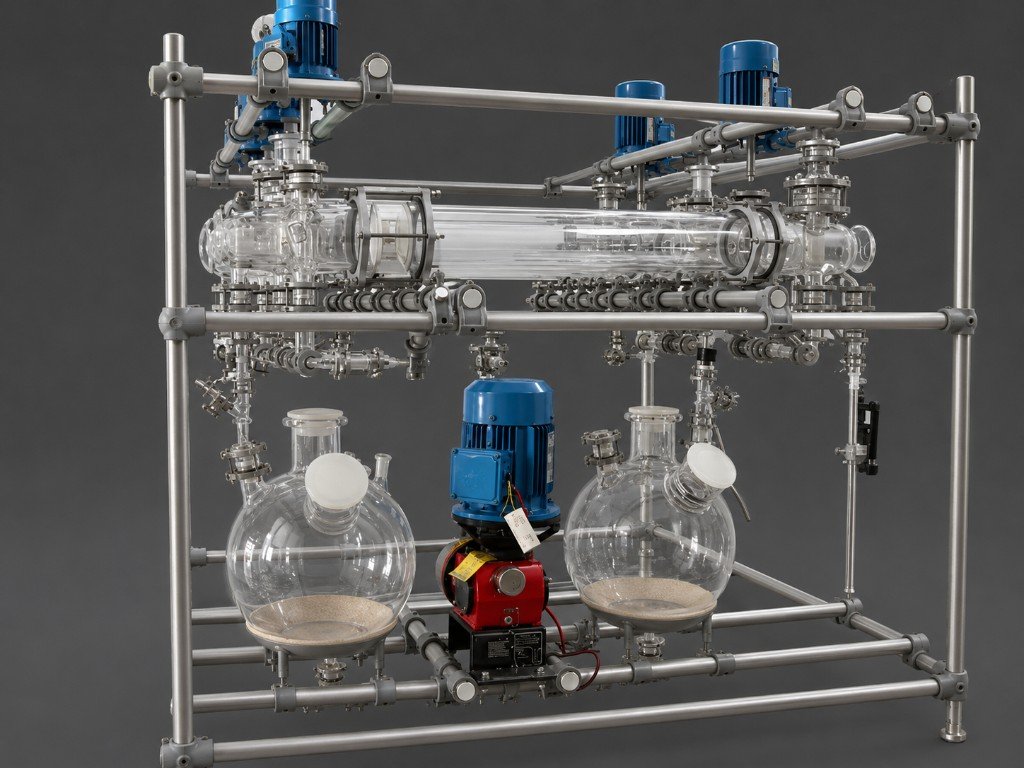

Mixer-Settlers
ANTICO MixSett™ systems are designed for liquid-liquid extraction using mixing and gravity separation stages.
The working principle involves intimate mixing of two immiscible liquids followed by phase separation in a settling chamber. The system includes mixer units, settler tanks, and interconnecting piping. It is used for solvent extraction and purification processes. Multiple stages can be arranged for improved separation efficiency. The design allows precise control over mixing intensity and residence time. It is suitable for both batch and continuous operations. It provides high flexibility for different extraction systems. It is widely used in hydrometallurgy, chemicals, and pharmaceuticals. ANTICO MixSett™ offers efficient and scalable extraction solutions.
- Type Liquid–Liquid Extraction System
- Capacity 1 – 500+ L/hr per stage
- MOC (Wetted Parts) Borosilicate Glass 3.3 / SS316L / PP / PVDF
- Operation Mode Batch / Continuous (Multi-stage Cascade)
- Stages Single / Multi-stage (Modular)
- Mixing System Agitated Mixer (Impeller-based)
Key Features
-
High phase separation efficiency
High phase separation efficiency
-
Simple operation
Simple operation
-
Modular design
Modular design
-
Suitable for multi-stage extraction
Suitable for multi-stage extraction
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.

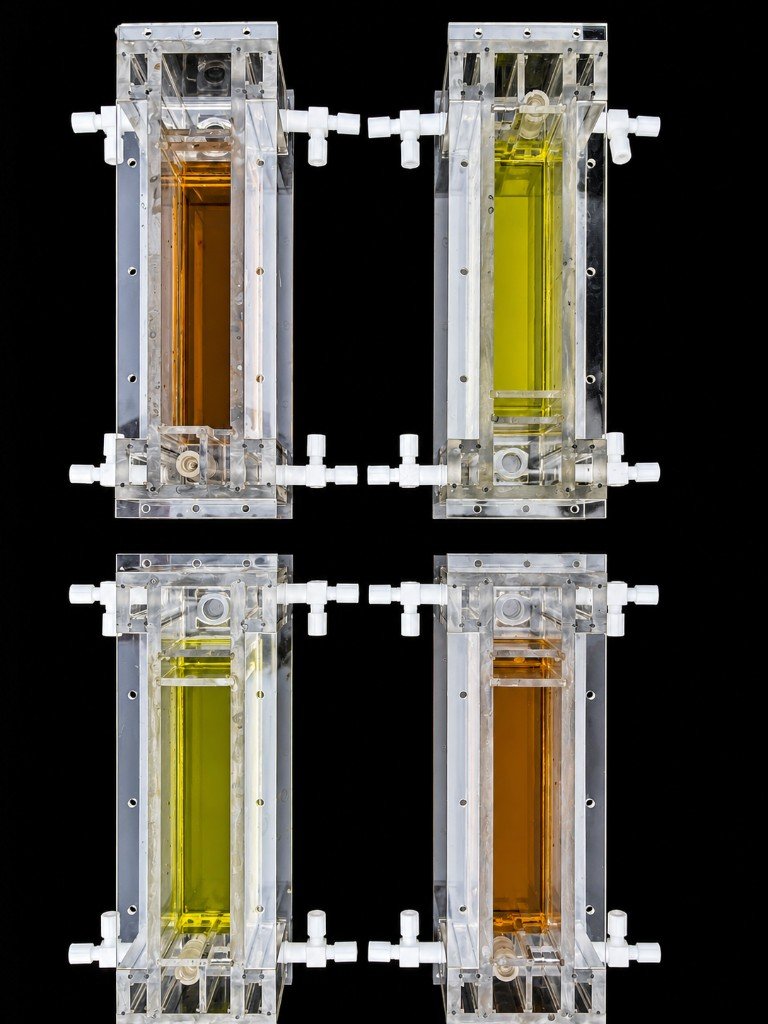

System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Hydrometallurgy
- Pharmaceuticals
- Solvent extraction
- Nuclear processing
- Fine chemicals
- Hazardous material processing
- Oil & gas processing
- Water treatment
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Liquid–Liquid Extraction System |
| Capacity | 1 – 500+ L/hr per stage |
| MOC (Wetted Parts) | Borosilicate Glass 3.3 / SS316L / PP / PVDF |
| Operation Mode | Batch / Continuous (Multi-stage Cascade) |
| Stages | Single / Multi-stage (Modular) |
| Mixing System | Agitated Mixer (Impeller-based) |
| Settling Zone | Gravity Phase Separation Chamber |
| Phase Separation Time | 0 – 30+ min (depends on system) |
| Interface Control | Manual / Automatic Level Control |
| Agitator Speed | 0 – 500 RPM (VFD controlled) |
| Temperature Range | Ambient to 200°C |
| Pressure Range | Atmospheric |
| Flow Configuration | Co-current / Counter-current |
| Instrumentation | Level, Temp, Flow |
| Automation | PLC (Optional for multi-stage control) |
| Key Advantage | High Stage Efficiency & Process Flexibility |
| Applications | Solvent Extraction, Hydrometallurgy, API Purification |
Related Products
FAQ
What capacity range is available for Mixer-Settlers?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
