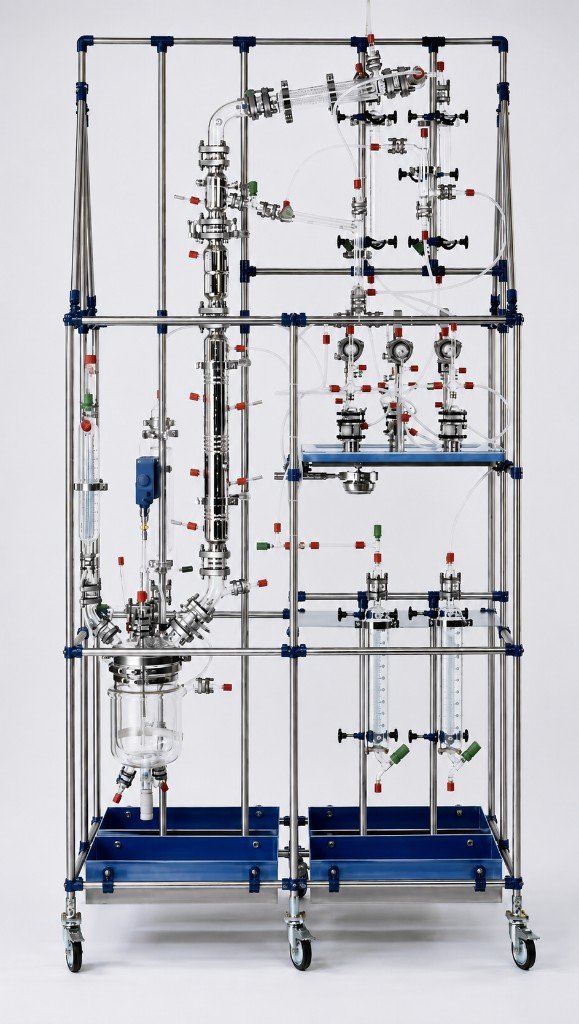

Rectification Unit
ANTICO RectiMax™ is an advanced distillation system designed for high-purity separation through rectification. The working principle involves continuous vapor-liquid contact with controlled reflux to maximize separation efficiency. The system includes a rectification column, reboiler, condenser, reflux drum, and control instrumentation. It is used for producing high-purity solvents and chemicals. Continuous operation ensures steady-state performance and consistent product quality.
The system allows precise control of reflux ratio and temperature profiles. It supports structured packing or tray-based configurations. It is widely used in fine chemicals, pharmaceuticals, and solvent recovery systems. The design ensures minimal energy consumption with optimal separation. ANTICO RectiMax™ is ideal for applications requiring stringent purity standards.
- Type Continuous Rectification System
- Capacity 10 – 5000+ L/hr
- MOC (Wetted Parts) Borosilicate Glass 3.3 / SS316L / Glass-lined…
- Column Type Packed Column / Tray Column
- Packing Material Structured Packing / Raschig Rings / Pall Rings
- No. of Theoretical Stages 1 – 100+
Key Features
-
Continuous operation
Continuous operation
-
High purity output (>99%)
High purity output (>99%)
-
Efficient reflux management
Efficient reflux management
-
Low energy consumption per unit separation
Low energy consumption per unit separation
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Bulk chemicals
- Petrochemical refining
- Pharmaceutical solvents
- Alcohol processing
- Specialty chemicals
- Academic & government research
- Oil & gas processing
- Water treatment
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Continuous Rectification System |
| Capacity | 10 – 5000+ L/hr |
| MOC (Wetted Parts) | Borosilicate Glass 3.3 / SS316L / Glass-lined Steel |
| Column Type | Packed Column / Tray Column |
| Packing Material | Structured Packing / Raschig Rings / Pall Rings |
| No. of Theoretical Stages | 1 – 100+ |
| Reflux System | Automatic Reflux Ratio Control |
| Design Pressure | Vacuum to +5 barg |
| Operating Temperature | Ambient to 300°C |
| Reboiler Type | Kettle / Thermosiphon |
| Condenser Type | Shell & Tube / Surface Condenser |
| Cooling System | Cooling Water / Chilled Water Vacuum System |
| Liquid Ring / Dry Vacuum Pump | Instrumentation |
| Temp Profile (multi-point), Pressure, Flow | Automation |
| PLC / SCADA with Continuous Control | Product Purity Up to 99.9%+ (depending on system design) |
| Applications | High Purity Solvent Recovery, Petrochemicals, Fine Chemicals |
Related Products
FAQ
What capacity range is available for Rectification Unit?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
