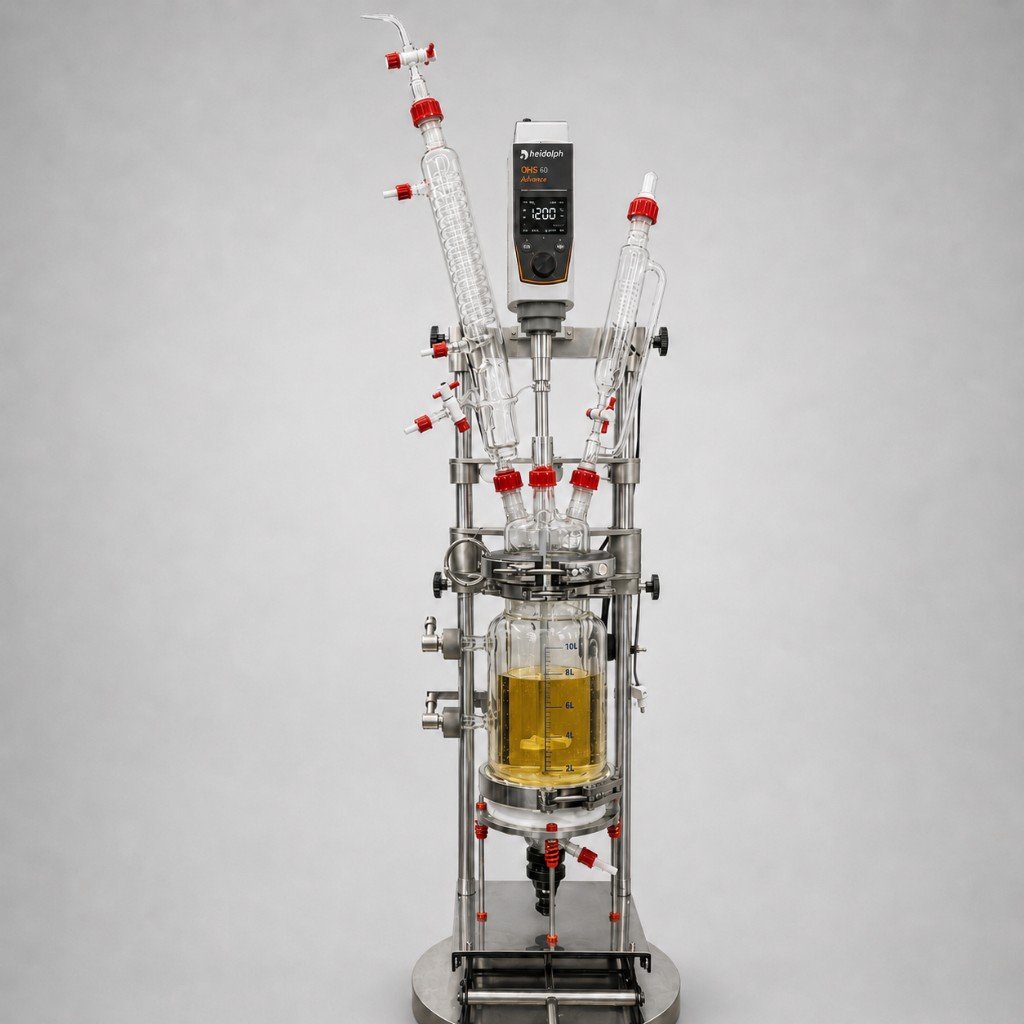

Benchtop Filter Reactors
ANTICO MiniFilterReact™ is a compact system combining reaction and filtration for laboratory-scale operations. The working principle allows completion of reaction followed by in-situ filtration using a built-in filter base. The system includes a glass vessel, filter plate, vacuum connection, and agitation system. It is used for crystallization, catalyst recovery, and solid-liquid separation. The integrated design eliminates the need for material transfer. It reduces contamination risk and product loss. The system supports vacuum-assisted filtration for efficient separation.
It is suitable for small batch and R&D applications. It is widely used in pharmaceutical and fine chemical laboratories. ANTICO MiniFilterReact™ improves process efficiency and convenience.
- Capacity 1 L – 20 L
- MOC (Wetted Parts) Borosilicate Glass 3.3 / SS316L
- Design Type Reactor with Integrated Filtration
- Operation Mode Batch
- Design Pressure Vacuum (-1 barg) to +1 barg
- Operating Temperature -20°C to 150°C
Key Features
-
Integrated reaction and filtration in one unit
Integrated reaction and filtration in one unit
-
Sintered filter plate or mesh-based filtration
Sintered filter plate or mesh-based filtration
-
Vacuum-assisted solid-liquid separation
Vacuum-assisted solid-liquid separation
-
Reduced product handling and contamination risk
Reduced product handling and contamination risk
-
Transparent construction for visual monitoring
Transparent construction for visual monitoring
-
Compact footprint for laboratory use
Compact footprint for laboratory use
System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Pharmaceutical R&D
- API development
- Fine chemicals
- Specialty chemicals
- Catalyst development
- Dyes and pigments
- Agrochemicals
- Polymer research
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 1 L – 20 L |
| MOC (Wetted Parts) | Borosilicate Glass 3.3 / SS316L |
| Design Type | Reactor with Integrated Filtration |
| Operation Mode | Batch |
| Design Pressure | Vacuum (-1 barg) to +1 barg |
| Operating Temperature | -20°C to 150°C |
| Jacket Type | Double Jacket (Heating/Cooling) |
| Agitator Type | Anchor / Paddle |
| Speed Range | 50 – 400 RPM (VFD controlled) |
| Filtration System | Sintered Plate / Filter Cloth |
| Filter Rating | 0.2 – 50 µm (interchangeable) |
| Discharge System | Bottom Valve / Filter Plate Vacuum System |
| External Vacuum Pump | Instrumentation |
| Temp Sensor, Vacuum Gauge | Automation |
| Manual / PID (Optional) | Key Advantage |
| Reaction + Filtration in Single Unit | Applications |
Related Products
FAQ
What capacity range is available for Benchtop Filter Reactor?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
