Short Path Distillation Unit SPDU
ANTICO ShortPath™ is designed for separation of high-boiling and heat-sensitive compounds under high vacuum conditions.
The working principle involves evaporation over a short distance to minimize residence time and thermal degradation. The system includes an evaporator, condenser, vacuum system, and collection units. It is used for purification of specialty chemicals, oils, and pharmaceuticals. The short path reduces pressure drop and improves separation efficiency. It allows operation at lower temperatures compared to conventional distillation. The system is ideal for thermally sensitive materials. It provides high purity and product recovery. It is widely used in fine chemicals and advanced material processing. ANTICO ShortPath™ ensures gentle and efficient separation.
- Type Molecular / Short Path Distillation
- Capacity 0.1 – 50 L/hr
- MOC (Wetted Parts) Borosilicate Glass 3.3 / SS316L
- Evaporation Type Thin Film / Wiped Film
- Operating Pressure High Vacuum (0.0001 – 1 mbar)
- Operating Temperature Ambient to 300°C
Key Features
-
Very low operating pressure
Very low operating pressure
-
Minimal thermal degradation
Minimal thermal degradation
-
High purity separation
High purity separation
-
Compact design
Compact design
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.

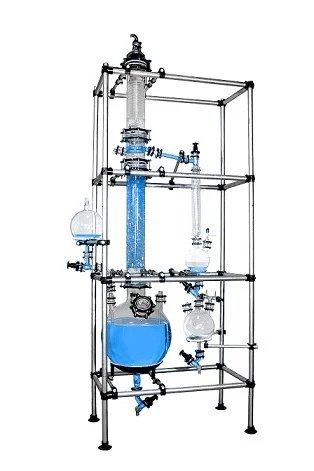

System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Pharmaceuticals
- Cannabis / herbal extracts
- Fine chemicals
- Polymers
- Food additives
- Essential oils
- Specialty chemicals
- Academic Institute
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Molecular / Short Path Distillation |
| Capacity | 0.1 – 50 L/hr |
| MOC (Wetted Parts) | Borosilicate Glass 3.3 / SS316L |
| Evaporation Type | Thin Film / Wiped Film |
| Operating Pressure | High Vacuum (0.0001 – 1 mbar) |
| Operating Temperature | Ambient to 300°C |
| Condenser Type | Internal Condenser (Short Path) |
| Film Formation | Wiper / Roller System |
| Feed System | Metering Pump |
| Heating System | Electric Heating Mantle / Oil System |
| Cooling System | Chiller / Circulating Cooling Vacuum System |
| Diffusion Pump / Dry Vacuum Pump | Residence Time |
| Very Low (seconds) | Instrumentation |
| Temp, Vacuum, Feed Rate | Automation |
| PID / PLC Control (Optional) | Key Advantage |
| Low Thermal Degradation, High Purity Separation | Applications |
Related Products
FAQ
What capacity range is available for Short Path Distillation Unit (SPDU)?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
