Agitated Filter Dryers
ANTICO DryFilter™ integrates filtration and drying operations within a closed system for high-value products. The working principle involves filtration followed by agitation and heating to remove residual moisture. The system includes a vessel, agitator, filter base, heating jacket, and vacuum system. It is used for handling sensitive, toxic, and high-value materials. The agitation ensures uniform drying and prevents lump formation. The enclosed design minimizes operator exposure and contamination. It supports efficient solvent recovery during drying.
The system is widely used in pharmaceutical and specialty chemical industries. It ensures consistent product quality and safety. ANTICO DryFilter™ enhances process efficiency and containment.
- Type Agitated Nutsche Filter Dryer (ANFD)
- Capacity 10 L – 5000+ L
- MOC (Wetted Parts) SS316L / Glass-lined Steel / Hastelloy
- Design Type Closed System for Filtration + Washing + Drying
- Operation Mode Batch
- Design Pressure Vacuum (-1 barg) to +6 barg
Key Features
-
Integrated operation
Integrated operation
-
Reduced contamination
Reduced contamination
-
Efficient drying
Efficient drying
-
Vacuum operation
Vacuum operation
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.

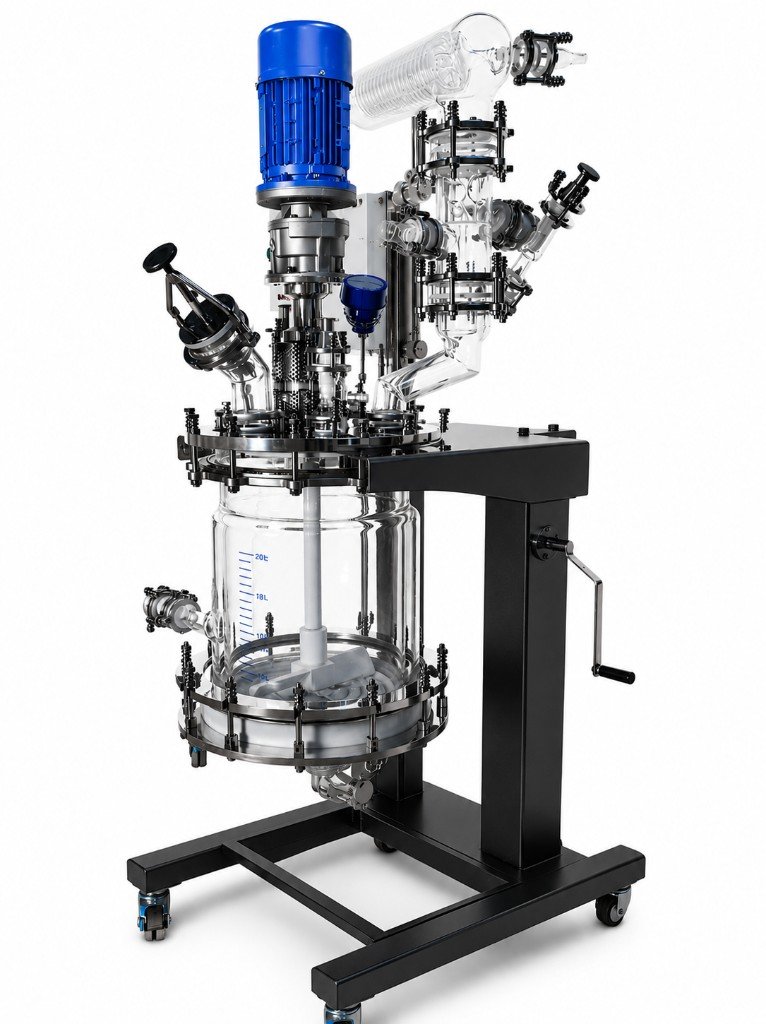

System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- API manufacturing
- Pharmaceuticals
- Fine chemicals
- Specialty chemicals
- Food & beverage processing
- Academic & government research
- Oil & gas processing
- Water treatment
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Agitated Nutsche Filter Dryer (ANFD) |
| Capacity | 10 L – 5000+ L |
| MOC (Wetted Parts) | SS316L / Glass-lined Steel / Hastelloy |
| Design Type | Closed System for Filtration + Washing + Drying |
| Operation Mode | Batch |
| Design Pressure | Vacuum (-1 barg) to +6 barg |
| Operating Temperature | Ambient to 200°C |
| Filtration System | Perforated Plate with Filter Cloth |
| Filter Area | 0.1 – 10 m² (customizable) |
| Agitation System | Paddle / Helical Agitator (Lift & Rotate) |
| Drying Mechanism | Vacuum Drying with Heated Jacket |
| Jacket Type | Conventional / Limpet Coil |
| Discharge System | Bottom Discharge (Manual / Hydraulic) |
| Sealing | Mechanical Seal (Single / Double) Vacuum System |
| Liquid Ring / Dry Vacuum Pump | Instrumentation |
| Temp, Pressure, Torque (optional) | Automation |
| PLC / SCADA (Optional) | Key Advantage |
| Filtration + Washing + Drying in Single Equipment | Applications |
Related Products
FAQ
What capacity range is available for Agitated Filter Dryer (AFD)?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
