Multipurpose Universal Reactors

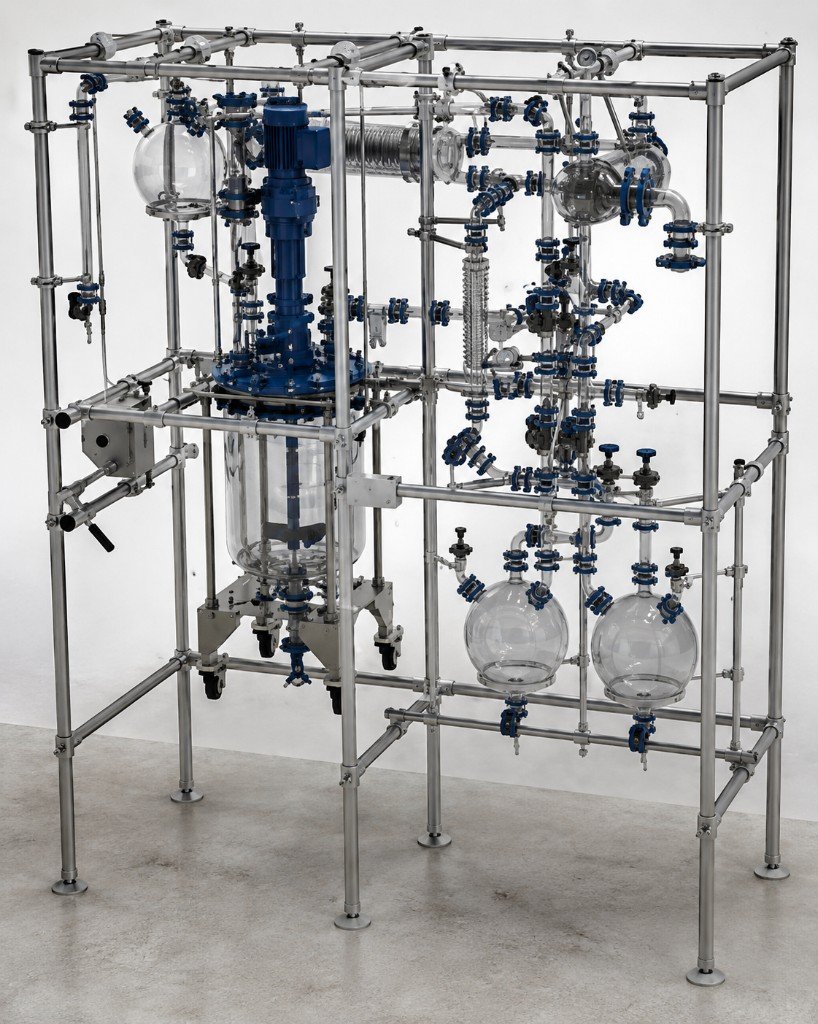

ANTICO UniReact™ is a versatile reactor system designed to perform multiple unit operations in a single setup. Its working principle allows integration of reaction, distillation, crystallization, and mixing processes. The system consists of a configurable vessel, interchangeable modules, agitator, and auxiliary equipment. It is used in environments where process flexibility is essential. The design allows rapid changeover between different process steps. It reduces the need for multiple dedicated equipment units. The reactor supports a wide range of operating conditions and chemistries.
It is suitable for R&D and pilot plant applications. Industries such as specialty chemicals and contract manufacturing benefit from its flexibility. ANTICO UniReact™ enhances operational efficiency and reduces capital costs.
- Capacity 2 L – 500+ L
- MOC (Reactor) Borosilicate Glass 3.3 / SS316L / Glass-lined…
- Design Type Modular, Interchangeable Configuration
- Design Pressure Vacuum (-1 barg) to +10 barg
- Design Temperature -80°C to +300°C (depends on MOC)
- Jacket / Heating Jacketed / Limpet Coil / External Loop
Key Features
-
Multi-operation capability
Multi-operation capability
-
Flexible process configuration
Flexible process configuration
-
Efficient heat transfer
Efficient heat transfer
-
Expandable modular design
Expandable modular design
-
Integrated instrumentation
Integrated instrumentation
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Contract manufacturing
- Process development labs
- Specialty chemicals
- Pharmaceutical R&D
- Fine chemical start-ups
- Advanced materials companies
- Oil & gas processing
- Water treatment
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 2 L – 500+ L |
| MOC (Reactor) | Borosilicate Glass 3.3 / SS316L / Glass-lined Steel / Hastelloy |
| Design Type | Modular, Interchangeable Configuration |
| Design Pressure | Vacuum (-1 barg) to +10 barg |
| Design Temperature | -80°C to +300°C (depends on MOC) |
| Jacket / Heating | Jacketed / Limpet Coil / External Loop |
| Agitator Types | Anchor / Turbine / Propeller / Helical Ribbon |
| Speed Range | 50 – 600 RPM (VFD controlled) |
| Seal Type | Mechanical Seal (Single/Double) |
| Reactor Configuration | Batch / Semi-batch / Continuous |
| Interchangeable Parts | Reactors, Condensers, Columns, Receivers |
| Nozzles | Charge, Vent, Vacuum, Sampling, Drain |
| Instrumentation | RTD/PT100, Pressure Transmitter, PID |
| Automation | PLC / SCADA with Recipe Control (Optional) |
| Safety Features | PRV, Rupture Disc, Inert Gas Provision |
| Compliance | ASME / DIN / ISO / GMP (Optional) |
Related Products
FAQ
What capacity range is available for Multipurpose / Universal Reactor?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
