Agitator Modules for Mixing

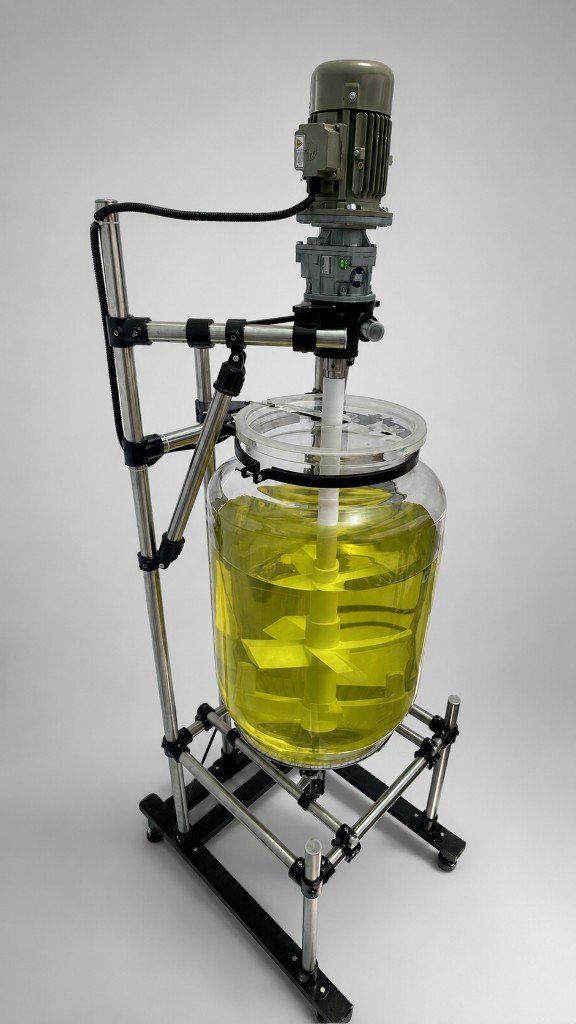

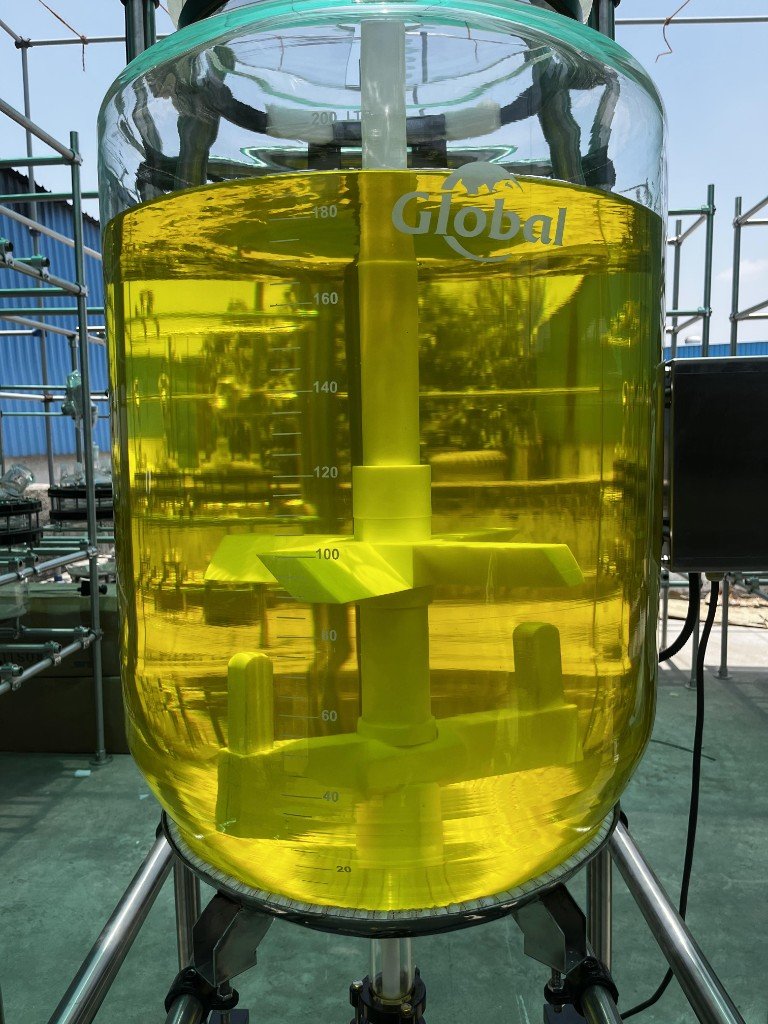

ANTICO AgiMix™ is a specialized mixing system designed to ensure efficient blending and mass transfer in process vessels. The working principle involves mechanical agitation using selected impeller designs based on process requirements. The system includes a motor, gearbox, shaft, impeller, and sealing arrangement. It is used to achieve uniform mixing, heat transfer, and reaction consistency. Different impeller types handle varying viscosities and flow patterns. The module supports variable speed operation for precise control.
It improves reaction kinetics and product uniformity. The system can be integrated with reactors and storage tanks. It is widely used in chemical, pharmaceutical, and food industries. ANTICO AgiMix™ is essential for achieving consistent process performance.
- Vessel Volume 1 – 100 L
- Motor Power 0.25 – 3 kW
- Speed Range 50 – 2000 RPM
- Impeller Types Anchor, Rushton, Pitched Blade, Hydrofoil, bu…
- Viscocity Handled 500 cP -100000 cP
- Materials SS316 / Alloy / Glass compatible, HALAR coate…
Key Features
-
Interchangeable impeller designs
Interchangeable impeller designs
-
Wide speed control range
Wide speed control range
-
High torque drive system
High torque drive system
-
Variable shaft lengths
Variable shaft lengths
-
Suitable for low and high viscosity fluids
Suitable for low and high viscosity fluids
-
Digital monitoring of RPM and power draw
Digital monitoring of RPM and power draw
System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Pharmaceuticals
- Biotechnology
- Petrochemicals
- Specialty chemicals
- Food processing
- Paints and coatings
- Adhesive’s manufacturing
- Battery slurry preparation
Technical Specifications
| Parameter | Specification |
|---|---|
| Vessel Volume | 1 – 100 L |
| Motor Power | 0.25 – 3 kW |
| Speed Range | 50 – 2000 RPM |
| Impeller Types | Anchor, Rushton, Pitched Blade, Hydrofoil, butterfly |
| Viscocity Handled | 500 cP -100000 cP |
| Materials | SS316 / Alloy / Glass compatible, HALAR coated etc. |
| Mounting | Top entry, bottom entry, side entry |
Related Products
FAQ
What capacity range is available for Agitator Module For Mixing?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
